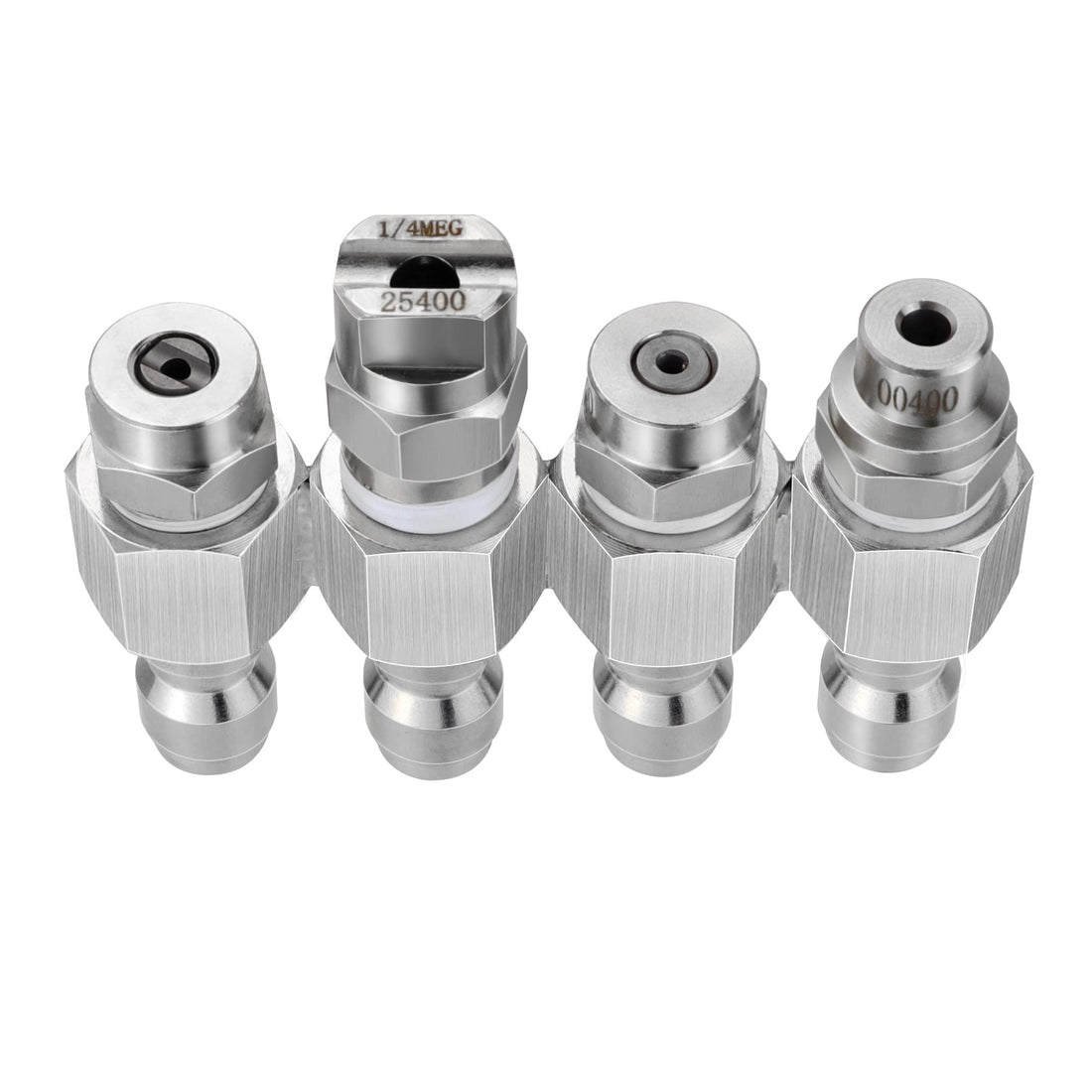

Tips & Nozzles
The same tips that can be used for high-pressure cleaning can also be used for low-pressure systems. The difference is that they will not generate nearly the same pressure.
Each nozzle will typically have two different specifications to pay attention to. The fan spray degree pattern and the orifice size. Refer to the chart below for common configurations.
Pressure Washer with a Downstream Injector Soft Wash System
Nozzle Size |
Fan Degrees |
Orifice Size |
Pressure Washer GPM |
Spray Pattern |
| 0010 | 00 | 010 | 3-5 GPM | High Pressure Straight Stream |
| 0020 | 00 | 020 | 8+ GPM | High Pressure Straight Stream |
| 0030 | 00 | 030 | 3 GPM | High Pressure Straight Stream |
| 0040 | 00 | 040 | 3-5 GPM | Low Pressure Straight Stream |
| 0050 | 00 | 050 | 3-5 GPM | Low Pressure Straight Stream |
| 0060 | 00 | 060 | 8+ GPM | Low Pressure Straight Stream |
| 2510 | 25 | 510 | 3-5 GPM | High Pressure Fan Spray |
| 2520 | 25 | 520 | 8+ GPM | High Pressure Fan Spray |
| 2530 | 25 | 530 | 3 GPM | High Pressure Fan Spray |
| 2540 | 25 | 540 | 5-7 GPM | Low Pressure Fan Spray |
| 2550 | 25 | 550 | 5-7 GPM | Low Pressure Fan Spray |
| 2560 | 25 | 560 | 8+ GPM | Low Pressure Fan Spray |
12 Volt Soft Wash System
Nozzle Size
Fan Degrees
Orifice Size
Soft Wash Pump GPM
Spray Pattern
0030
00
030
5 GPM
High Pressure Straight Stream
0040
00
040
7 GPM
High Pressure Straight Stream
0050
00
050
5 GPM
Low Pressure Straight Stream
0060
00
060
7 GPM
Low Pressure Straight Stream
2530
25
530
5 GPM
High Pressure Straight Stream
2540
25
540
7 GPM
High Pressure Straight Stream
2550
25
550
5 GPM
Low Pressure Straight Stream
2560
25
560
7 GPM
Low Pressure Straight Stream
The most popular option for soft wash nozzles is a J-Rod with appropriately rated nozzles or an M5 Twist Nozzle.
